Basic Info
Model No.: ZT-005-36
Additional Info
Packaging: as customer's need
Productivity: 25m/min
Brand: zhongtuo
Transportation: Ocean,Land
Place of Origin: cangzhou
Supply Ability: 50 sets/month
Certificate: CE, ISO, SGS, IAF,CNAS
Product Description
50-75-100 Drywall Steel Frame Making Machine
Cater to the market requirement, Zhongtuo 50-75-100 Drywall Steel Frame Making Machine was developed. Different with other roll forming machines, Zhongtuo Drywall Steel Frame Making Machine supports both U shape and C shape metal track and stud making meanwhile sizes are options. So we call it as all-in-one combined Drywall Steel Fram Roll Forming Machine.
Features of 50-75-100 Drywall Steel Frame Making Machine
1. One machine either could be used to make U stud in various sizes
2. Able to make C stud in various sizes.
3. For making C and U without changing rollers.
4. Easy to adjust sizes just by sizing in computer.
5. Machine is controlled by PLC station.
Main elements of Drywall U Channel Roll Forming Machine
1.Decoiler
2.main roll forming machine

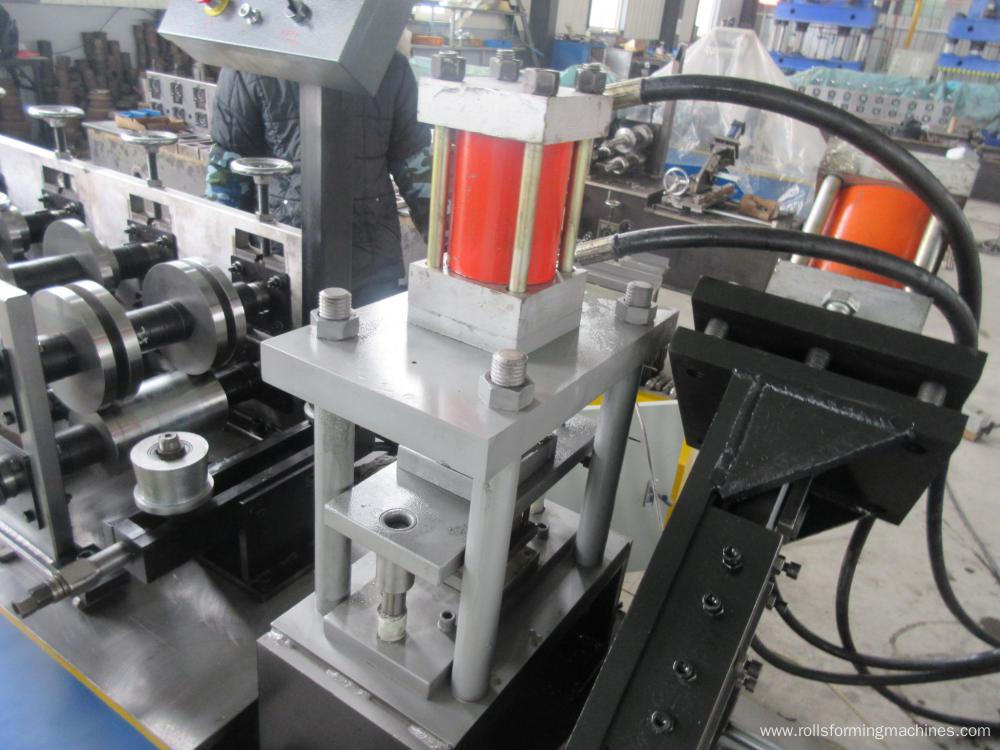

3.punching maching(as customer's need)
4.Cutting machine (normal cutting and flying track cutting saw)(as customer`s need choose one set)
5.PLC control
6.Drywall keel C stud Roll Forming Machine Counter
7.hydraulic station
8. Drywall U Channel Roll Forming Machine receiving table
Some main parameters of Drywall Steel Frame Machine
1.Working efficiency:25m/min
2.Processing material: GI
3.Material hardness: 550MPA-350MPA
4.Thickness of material: 0.5-1.2mm
5.Width of material: as you need
6.Un-coiler system: 1.5 Ton decoiler (Manual Decoiler, electric decoiler , hydraulic decoiler)
7.Number of rollers: 10 rollers
8.Drywall C stud Making Machine Roller fixer: guide column
9.Roller material: Gcr12 MoV quenched
10.Material of shaft: 45# steel
11.Diameter of shaft: 40mm
12. Main power: 3KW
13.Hydraulic power: 3KW
14.Hydraulic pressure: 20Mpa
15.Blade material:Gcr12 MoV quenched
16.Voltage: 380V, 50HZ, 3phase (adjustable by customer)
17.Drywall C stud Making Machine Frame: 25mm
18.Drive : gear, chain or case of different speeds(as customer`s demand)
19.Drywall C stud Making Machine Punching mould: each type one set
20.Punching machine: Gcr12 MoV quenched
21.Drywall C stud Making Machine Control system: Delta of Taiwan.
22.Automatic Drywall C stud Forming Machine color: yellow or blue
23.Lenth: 3000*800*1400mm
