Zhongtuo Roll Forming Machinery Co., ltd

Steel Frames rolling making Machines
Steel Frames rolling making Machines
Steel Frames rolling making Machines
Steel Frames rolling making Machines
Steel Frames rolling making Machines

Steel Frames rolling making Machines

Unit Price: USD 20000 - 5000 / Set/Sets
Payment Type: L/C,T/T
Incoterm: FOB
Min. Order: 1 Set/Sets
Delivery Time: 30 Days

Contact Now

Basic Info

    Model No.: ZT-006-215

Additional Info

    Packaging: as customer's need

    Productivity: 15-30m/min

    Brand: zhongtuo

    Transportation: Ocean,Land

    Place of Origin: China(mainland)

    Supply Ability: 30 sets/month

    Certificate: CE/ISO/SGS/IAF/CNAS.

Product Description

Professional Manufacturer Steel Frames Machines

Support you money !! Support you service !! Support you technology !!

PLC control system !! Hydraulic cutting system !! Mult-language conversion system !!

Professional Manufacturer Steel Frames Machines is a strip of raw materials, through continuous cold rolling molding, production of complex cross-section profiles, which consists of decoiler, guide rack, forming hosts, calibration device, cut-off part, receiving station , composed of electrical control and so on. It is easy to use, easy to operate and so on.

121

Professional Manufacturer Steel Frames Machines Technological process

Uncoiler-feeding system-Roll Forming Machine-cutting system-table

KEEL ROLL FORMING MACHINE
Professional Manufacturer Steel Frames Machines Uncoiler system
Usage:It is used to support the steel coil and uncoil it in a turnable way.
Passive uncoil pulled by roll forming system
Loading capacity:1500kg
Uncoiling width:300mm
Inner diameter: 450-550 mm

keel roll forming machine 2

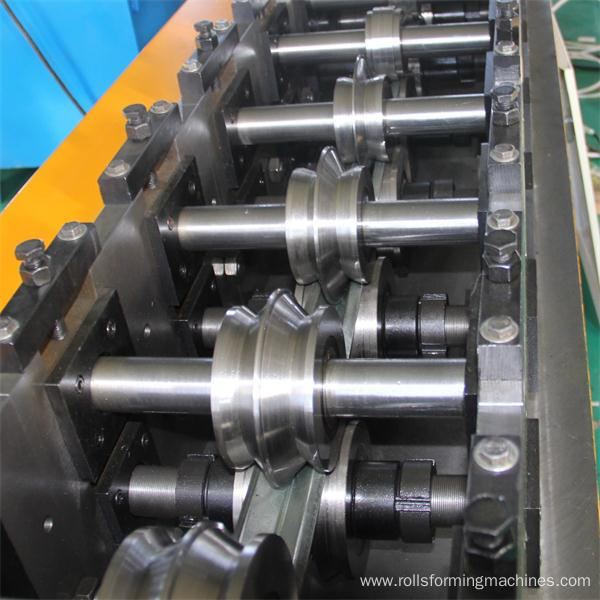

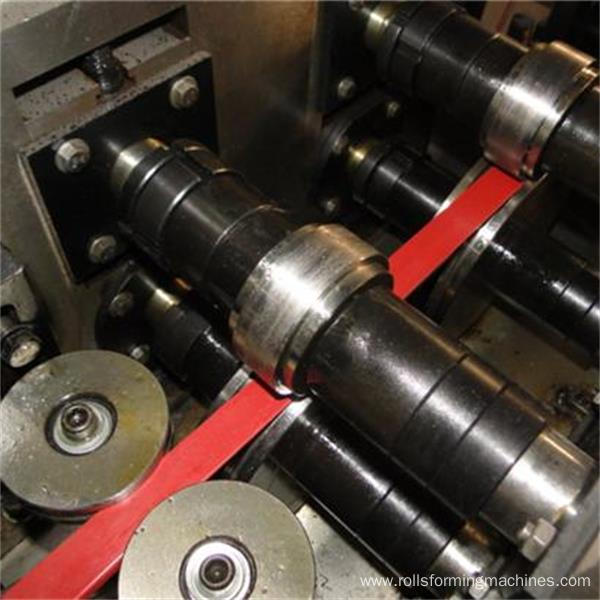

Professional Manufacturer Steel Frames Machines Main Roll Forming System
Feature : Ensure stability , precision and lifetime.
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission ,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
Length of the main part: about 3300 х800 х1400
Weight of main part: 3000kg
Voltage : 380 V/50HZ 3Phase or as your required
Roller fixer : middle plate
Frame : 450 H steel welded
Drive mode: gear
Frame thickness:30mm
Material of rollers:GCr12MoV, surface hard chromium plating.
Material of shafts: 45# steel with tempering
Diameter of shafts: φ 40mm
Number of rollers : 14 rollers
Main power: 3 kw

1

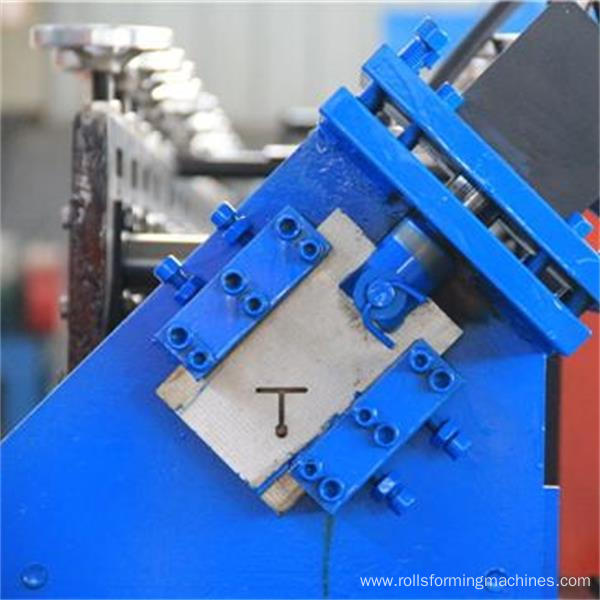

Professional Manufacturer Steel Frames Machines Shearing Mechanism
Feature : Ensure stability, precision and cutting speed
Function : Automatic cutting controlled by PLC
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Material of blades: Cr12 quenched
Power supply : hydraulic power
Components:It contains one set of blade , one hydraulic tank and one cutter machine.

2
Professional Manufacturer Steel Frames Machines Hydraulic Station
It is controlled by gear pump. After filling the hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.
Power: 5.5 kw
Hydraulic oil: 46 #

21
Professional Manufacturer Steel Frames Machines Electric Control System
1. Adopted PLC , frequency converter , Delta touch screen from Taiwan to ensure high speed with stability, precision and lifetime.
2. Other electric element are Panasonic

keel roll forming machine 4

Hydraulic Bending Roll Machinery Our Service:

1. Installation and training of machine manufacturer:
a. If buyers visit our factory and check the machine, we will teach you how to install and use the roll forming machine for sale , and also train your workers/technician face to face.
b. Without visiting, we will send you user manual and video to teach you to install and operate.
c. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2. After Service of roll forming machine for sale:
a. One year guarantee for whole roll forming machine for sale.
b. 24 hours technical support by email or calling:
c. If there is any problem found of steel roof sheet roll forming machinery, we will repair roll forming machine for sale for free in one year.

Hydraulic Bending Roll Machinery Company Information:

Cangzhou Zhongtuo International Trade Co., Ltd is a professional manufacturer located in northwest of CangZhou, as a long history of cold roll formingmachine production base. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe,South America, and Australia and so on.

initpintu

Looking for ideal Steel Frames Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Steel Making Frames Machines are quality guaranteed. We are China Origin Factory of Making Frames Machines. If you have any question, please feel free to contact us.

Product Categories : C/U/ Channel & T Bar Roll Forming Machine > Ceiling Channel Roll Forming Machine
